PPG B-Series Sequential 6 Speed AWD

Details

PPG B-Series Sequential 6 Speed AWD

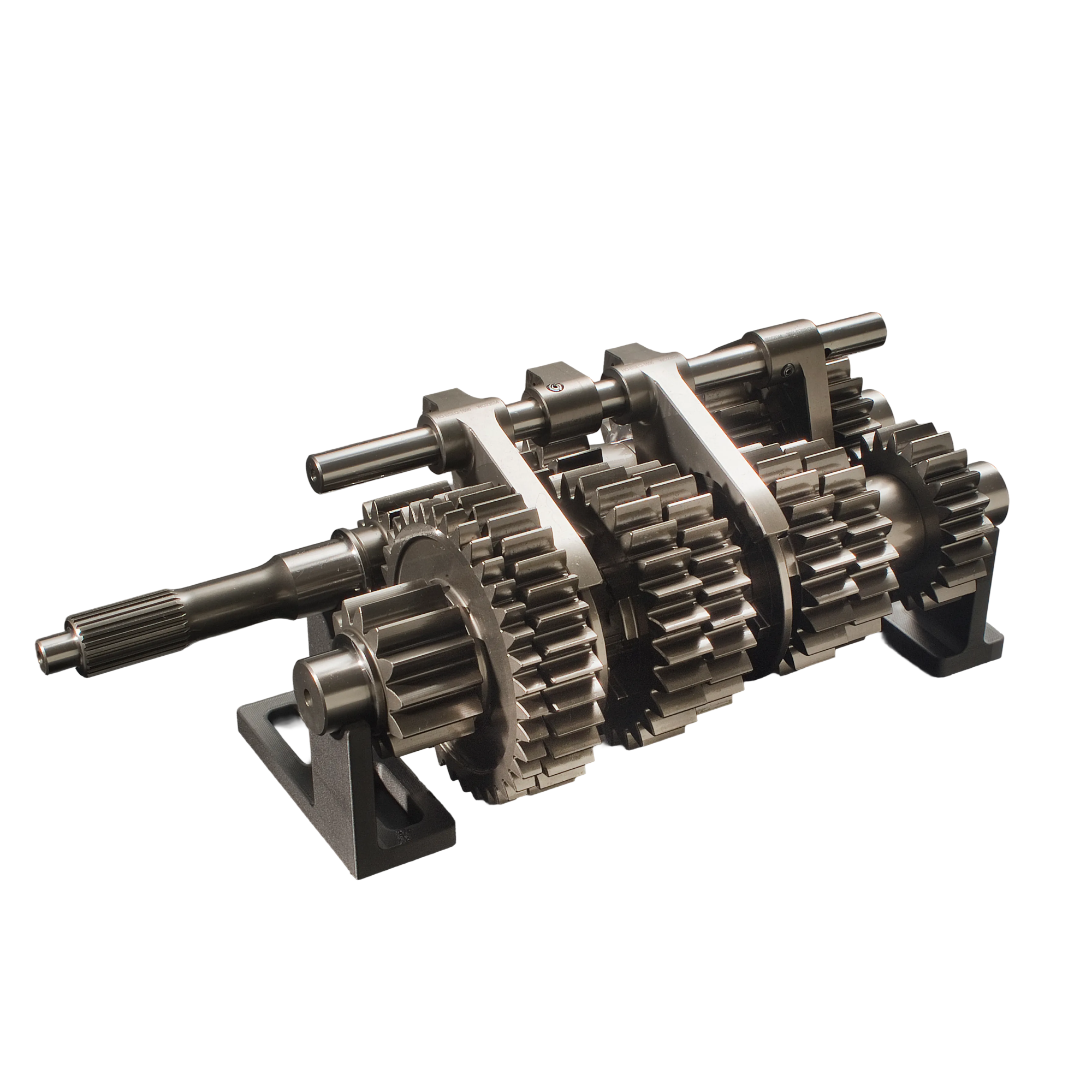

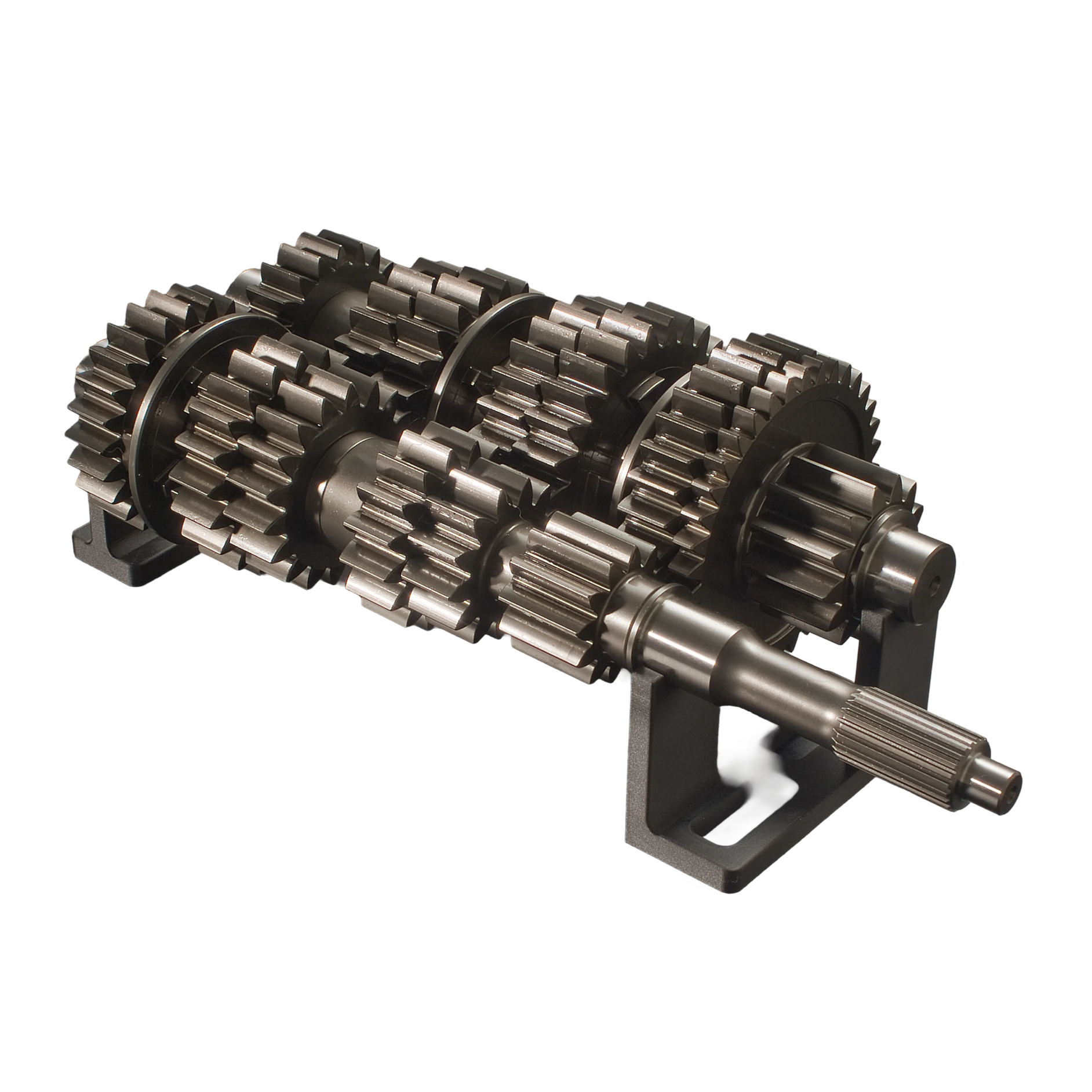

• New Larger Straight Cut Dog Gears with increased load capacity, based on a new 80mm gear centre (OEM 73mm) using PPG optimised tooth profiles.
• New Low Friction Sequential Actuation, yielding effortless shifts, inc reverse lock out.
• Fits AWD & FWD Application - Using a bolt on blank plate.
• Billet Gearbox housing using O-Ring seals to mount faces for ease of service.
• Dual Output Rotary position sensor & Gear Lever Load Cell for closed loop shifts
• Sub-40 ms  clutchless shifts, helping keep boost pressure stable over the shift period
• New Final Drive & Differential,  New Heavy Duty final drive design with a new PPG LSD differential

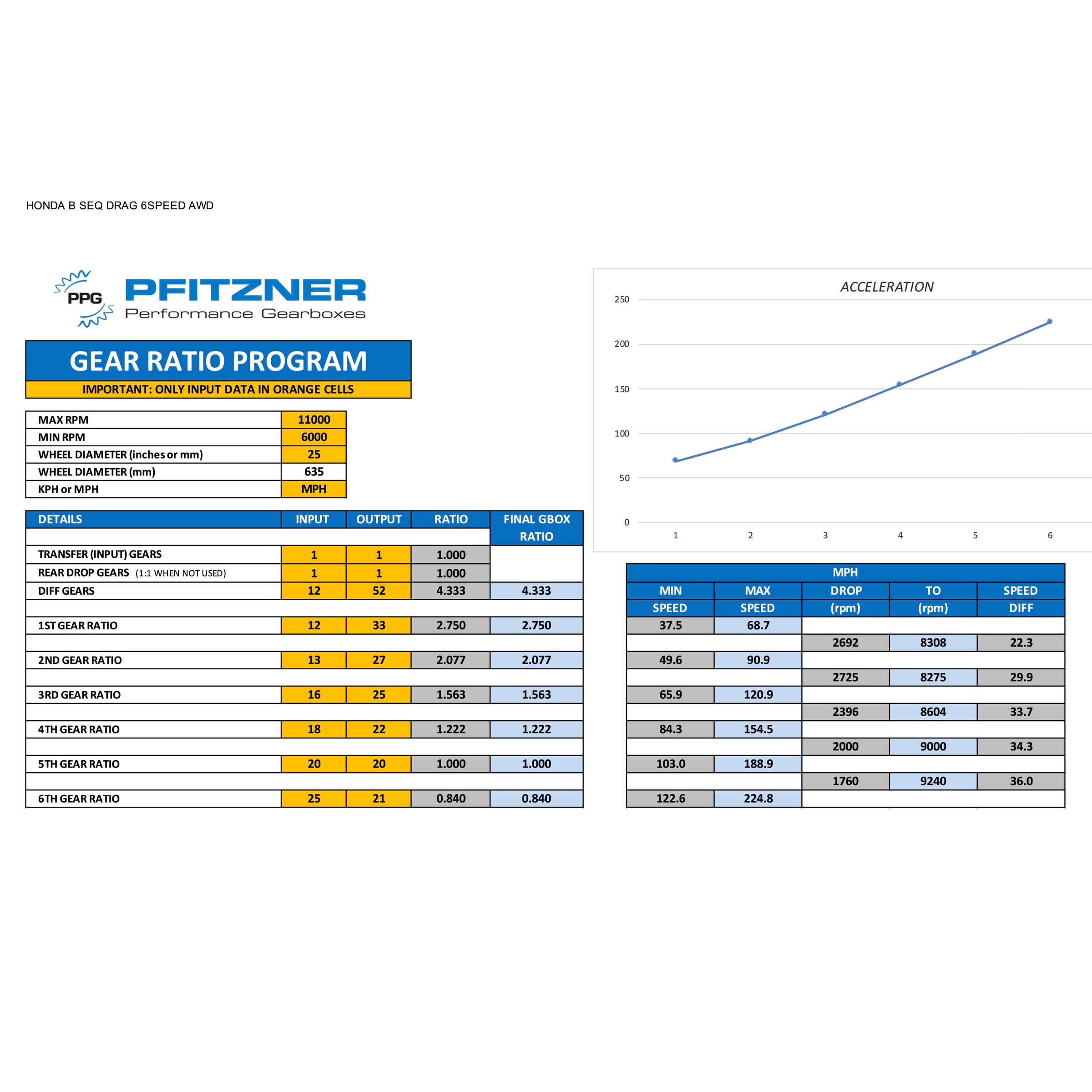

• Drag & Race ratio options - More Final Drive, Gear ratios TBC
• Optional MME Paddle Shift Kit - A custom MME bolt on solution for all motorsports applications.
• Motorsports Sensor Pack - Input Shaft; Output shaft; Temperature.
• Fits all existing output shafts and AWD transfer cases.

• 5  & 6 Speed Straight Cut Dog Gears - New Ratio Options TBC
• Weight - 35Kg
• Oil Capacity - 3 Liters - Motul 75W-140 Gear Competition.
• Heavy Duty Input Shaft
• Low Friction Sequential Actuation - Inc Electronic Neutral & Reverse Lock Out
• Dual Output Miniature Rotary Position Sensor - 0-5Vdc Output
• Motorsports Gear Lever Load Cell - 0-5Vdc Output - Centred @2.5Vdc Output

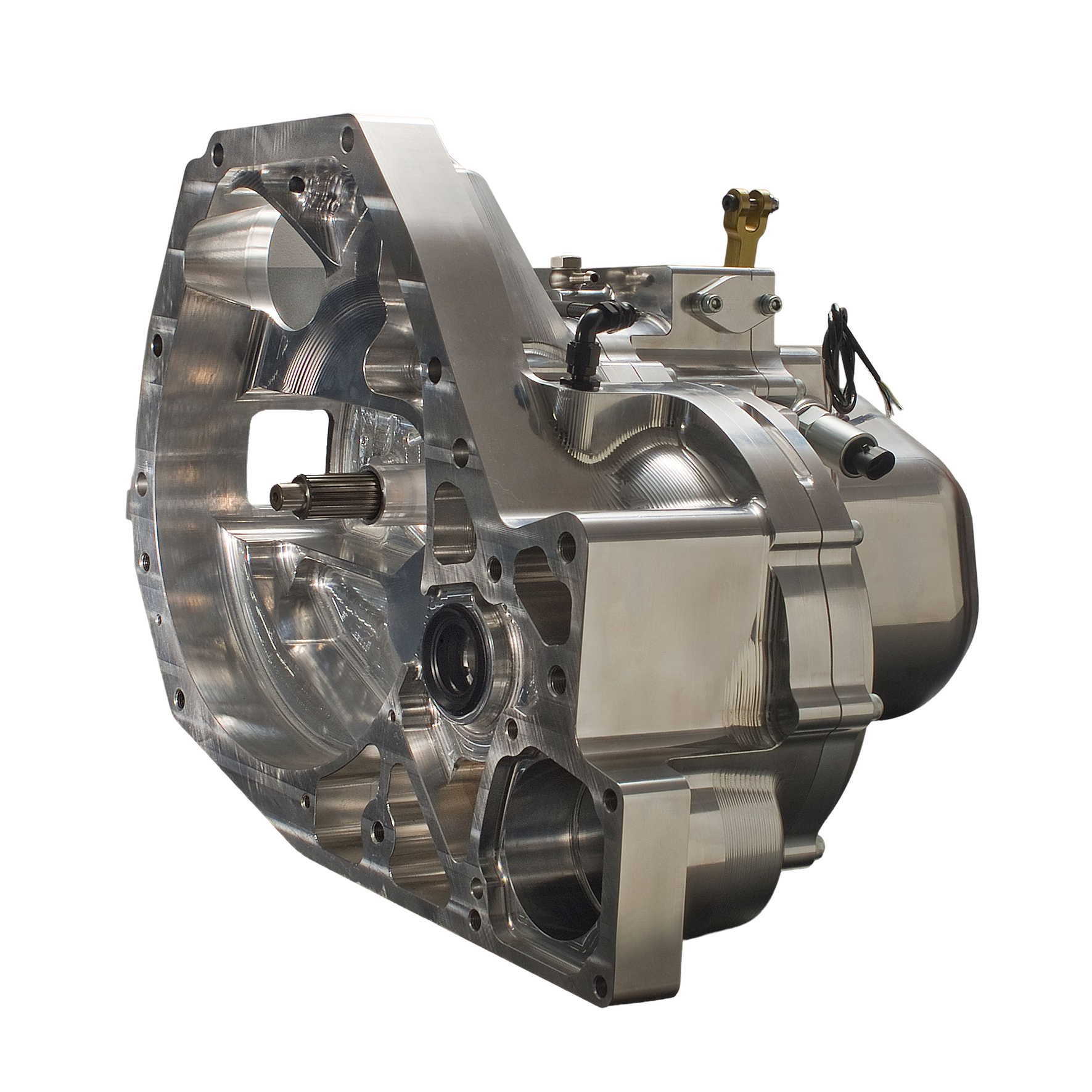

• Custom Honda B16 - B18, Three Section Billet Gearbox Case - O-Rings on mounting faces
• Sequential Gear Shift Barrel with low friction selector forks
• New PPG Heavy Duty Torsion LSD - Plated LSD TBC
• OEM Output Flange compatible
• New Heavy Duty Final Drive System
• High-Capacity Heavy Duty Bearings
• Cable Operation - solid rod style Series 4 Cable, Inc heat management
• External Oil Pump provision
• Internal spray bar
